Conflation Framework

To create a comprehensive and attribute-rich building stock dataset, EUBUCCO utilizes a multi-stage geospatial conflation pipeline. This process integrates fragmented datasets — authoritative governmental data, volunteered geographic information (OpenStreetMap), and ML-derived footprints (Microsoft) — into a single, non-redundant database.

The framework follows a strict hierarchy prioritizing sources with higher footprint precision and attribute quality.

  1. Governmental Data
  2. Volunteered Data (OpenStreetMap)
  3. ML-derived Data (Microsoft Building Footprints)

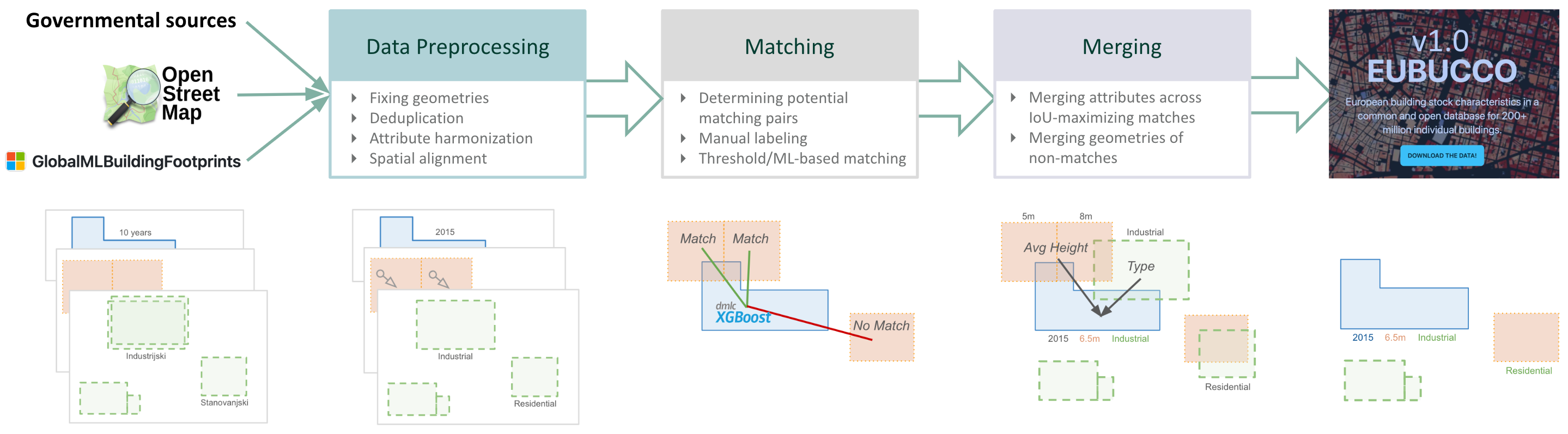

Conflation Framework Figure 1: Overview of the EUBUCCO conflation pipeline, illustrating the journey from raw disparate sources to a harmonized, merged building database.

1. Data Preprocessing

Before matching, data must be harmonized and cleaned to ensure spatial and semantic consistency across all inputs.

Spatial Alignment (Rubbersheeting)

Datasets often exhibit systematic local shifts. We apply a localized rubbersheeting method to correct positional discrepancies.

  • Landmark Identification: Reciprocal nearest neighbors are identified within a 25m threshold.
  • Offset Estimation: Neighborhood-level offsets are calculated using H3 grid cells (Resolution 9).
  • Correction: A uniform affine translation is applied to buildings within cells where systematic shifts are detected, correcting offsets >1m in 53% of cases.

Deduplication and Repair

Internal consistency is enforced within each source to remove redundant footprints:

  • Geometry Repair: Invalid or "broken" geometries are fixed or removed.

  • Deduplication: We remove buildings that significantly overlap with others in the same dataset. If the IoSA exceeds a tolerance threshold of 0.25, the building with the smaller area is discarded.1

    \[\text{IoSA}(a, b) = \frac{|a \cap b|}{\min(|a|, |b|)}\]

    where \(|\cdot|\) denotes the surface area.

Attribute Cleaning and Harmonization

Raw attributes are often noisy or follow local schemas. We implement a rigorous cleaning pipeline:

  • Outlier Removal: Unrealistic values are filtered out, such as building heights \(>350m\), floor counts \(>100\), or cases where the floor-to-height ratio suggests a floor height \(<1.5m\). Construction years are extracted and clipped to a valid range (i.e. 0–2029).
  • Use Type Harmonization: Source-specific tags are mapped to a harmonized use-type classification. This process includes the removal of non-building structures (e.g., traffic areas, radio masts, or underground structures) based on their source classification.

2. Matching

The core of the conflation process is identifying which footprint geometries from different sources refer to the same real-world structure.

Candidate Selection

To manage computational complexity, we employ a symmetrical k-nearest neighbors (k-NN) search. For every building, we identify the top k=3 potential matches in the secondary dataset within a defined distance threshold and vice-versa.

Machine Learning Classifier

Unlike traditional methods that use simple "rule-of-thumb" intersection thresholds (like IoU > 0.5), EUBUCCO employs a state-of-the-art XGBoost classifier to assess whether two footprint geometries refer to the same real-world structure.

  • Features: The model is trained on 87 geometric and contextual features, including intersection metrics, shape characteristics (elongation, convexity), and spatial context (neighbor density).
  • Performance: This framework achieves an F1-score of 99.7%, significantly outperforming traditional intersection-based heuristics which often miss 12–57% of true matches.
Feature Group Examples
Intersection IoU (Intersection over Union), IoA (Intersection over Area), IoSA , Aligned Area Overlap
Shape Perimeter, Squareness, Corner Count, Longest Axis, Elongation, Convexity
Similarity Centroid Distance, Wall Alignment, Shared Wall Length, Hausdorff Distance
Contextual Neighbor counts (5m to 50m), Average alignment in neighborhood, Local density metrics

3. Merging

Once matches are identified, the geometries and attributes are integrated to produce the final building record.

Attribute Merging

Attributes (Type, Height, Floors, Construction Year) are merged across matching blocks using logic designed to maximize spatial consistency. We define the optimal source set \(\mathcal{S}_a^*\) for a target building \(a\) as the subset of available buildings \(\mathcal{B}_a\) that maximizes the Intersection over Union (IoU):

\[\mathcal{S}_a^* = \arg\max_{\mathcal{S} \subseteq \mathcal{B}_a} \text{IoU}(a, \mathcal{S})\]

where \(\mathcal{B}_a\) represents the set of all matching building footprints from various sources for the target building \(a\), and \(\mathcal{S}\) is any possible combination of those footprints.

Numerical Attributes

  • Merge Aggregation: Building height, floors, and construction year are merged using intersection-area–weighted averages.

    \[V_{merged} = \frac{\sum_{i \in \mathcal{S}_a^*} (V_{source, i} \cdot w_i)}{\sum_{i \in \mathcal{S}_a^*} w_i}\]

    where \(V_{source, i}\) is the numerical value from source footprint \(i\), and \(w_i\) is the area of intersection between the target footprint \(B_{target}\) and the \(i\)-th matching source footprint \(B_{source, i}\).

  • Confidence Scores: To represent the reliability of numerical merges, we provide the range of contributing values:

    \[\text{Range} = [ \min(V_{source, i}), \max(V_{source, i}) ] \quad \forall i \in \mathcal{S}_a^*\]

    where \(\min\) and \(\max\) denote the lowest and highest attribute values found among matching source footprints in the optimal source set.

Categorical Attributes

  • Merge Aggregation: Building types are assigned based on the dominant category by cumulative intersecting area.

    \[C_{merged} = \arg\max_{c \in \mathcal{C}} \sum_{i \in \mathcal{S}_{a, c}^*} \text{Area}(B_{target} \cap B_{source, i})\]

    where \(\mathcal{C}\) is the set of possible building categories, and \(\mathcal{S}_{a, c}^*\) is the subset of matching buildings in \(\mathcal{S}_a^*\) that belong to category \(c\).

  • Confidence Scores: The confidence score represents the spatial agreement (Intersection over Area) of the source geometries relative to the target:

    \[\text{Confidence} = \frac{\text{Area}(B_{target} \cap \bigcup_{i \in \mathcal{S}_a^* } B_{source, i})}{\text{Area}(B_{target})}\]

    where \(\bigcup B_{source, i}\) represents the geometric union of all matching source footprints, and \(B_{target}\) is the geometry of the target footprint.

Geometry Merging

Geometries are merged hierarchically based on the source priority.

  • Block-Level Consistency: We select the best footprint representation for an entire building block from a single source.
  • Avoiding Fragmentation: This prevents the "stitching together" of misaligned units from different sources, preserving the structural integrity of the building representation.

  1. We drop the smaller building since, in many cases, it represents a redundant building part or a sub-structure with special characteristics (e.g., a chimney or tower) that is already accounted for by the larger footprint. ↩
